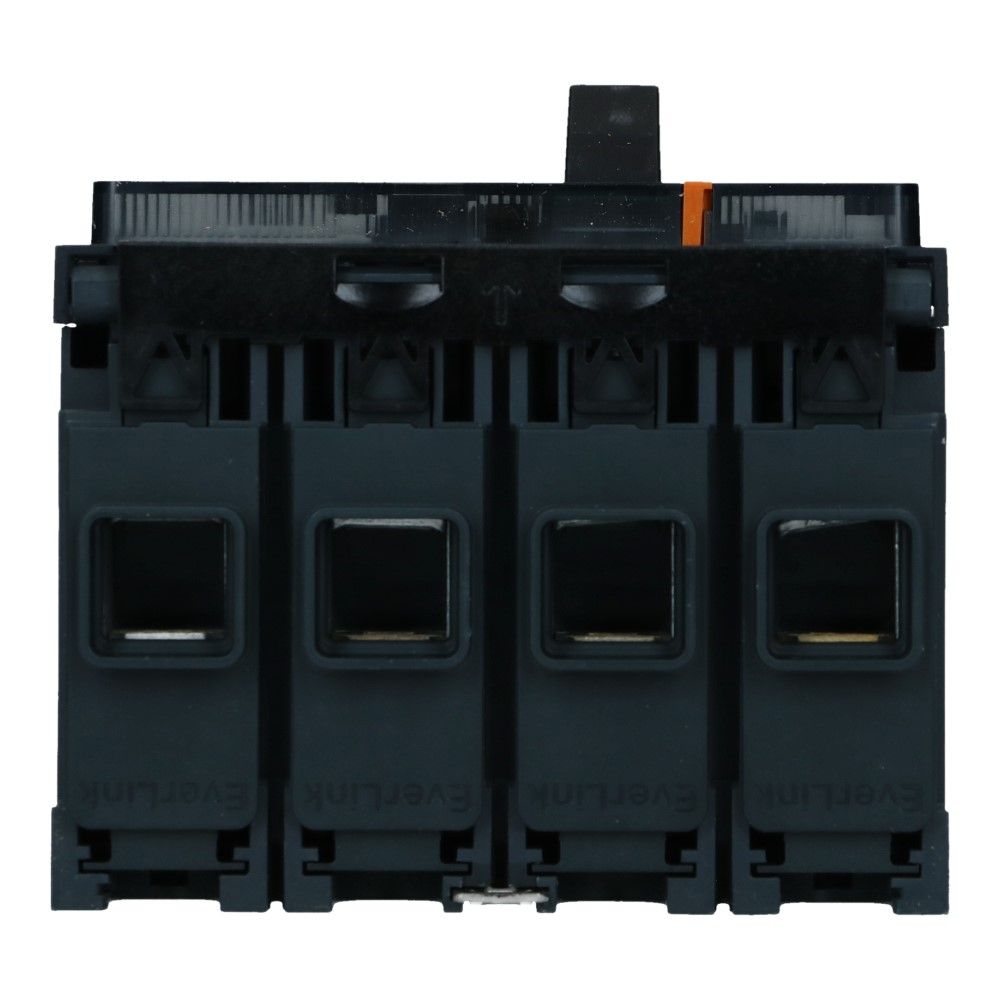

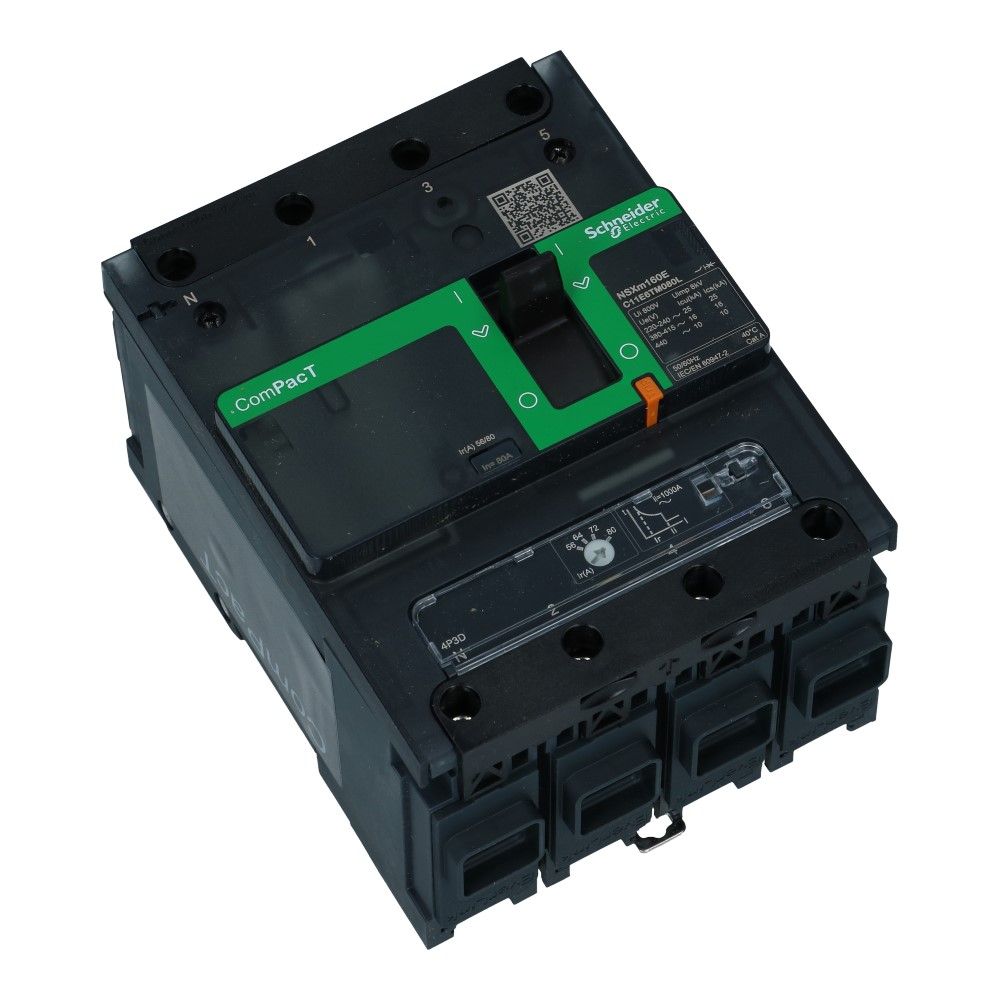

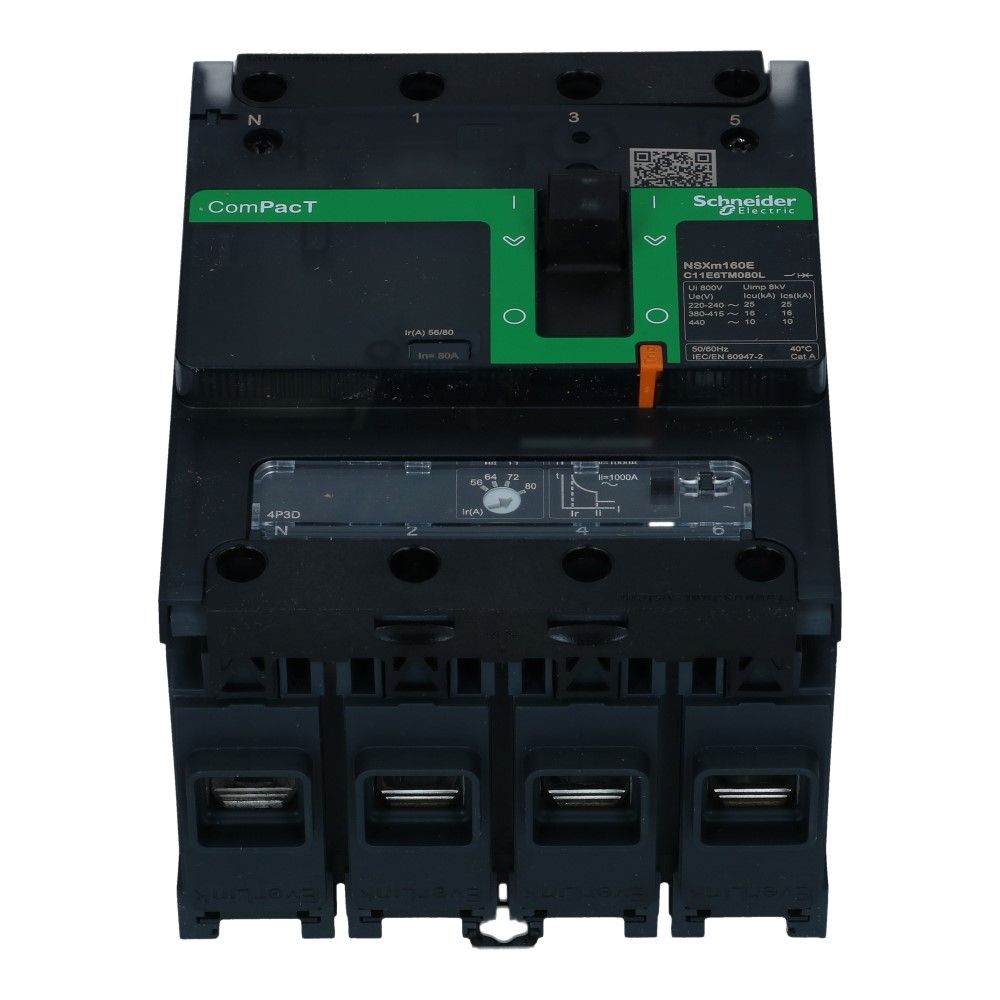

Installatieautomaat 3 polig + nul 16A TM-D 16kA Compact NSXm100E Everlink
Artikelnummer: 231693Productomschrijving
The Compact NSXm range of circuit breakers is a molded case circuit breaker solution offering great performance in a compact frame size.
Nominal current: 16 to 160 A
• Five breaking capacities : 16, 25, 36, 50, 70 kA at 415 V
• Insulation voltage up to 800 V AC
• One physical size from 16 to 160 A
• 3 and 4 pole versions available
• Isolation with positive break indication
• Thermal-magnetic protections and switch disconnectors
• Embedded Earth leakage protection within the trip unit
• Optimized range of auxiliaries and accessories field installable
• Compliance with international standards: IEC 60947-1 and 2, CCC, EAC and other local certifications
• Compliance with specifications of marine classification companies (MCCB): Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas and RINA
Productspecificaties
- Artikelnummer231693
- MerkSCHNEIDER ELECTRIC
- TypeC11E6TM016L
- Gtin3606481989468
- Document 1
- Document 2
- Document 3
- Nom. continustroom Iu16A
- Nom. spanning690 t/m 690V
- Nom. afschakelvermogen Icu bij 400 V, 50 Hz16kA
- Instelbereik overbelastingsbeveiliging11.2 t/m 16A
- Instelbereik onvertraagde kortsluitbeveiliging500 t/m 500A
- Geïntegreerde aardsluitingsbeveiligingNee
- Aansluitwijze hoofdstroomcircuitSchroefaansluiting
- ApparaatbouwvormInbouwapparaat vaste inbouw techniek
- Geschikt voor omegarailmontageJa
- Omegarailmontage optioneelNee
- Met tripcontactJa
- Met onderspanningsspoelNee
- Met geïntegreerde onderspanningsspoelNee
- Aantal polen4
- Positie aansluiting hoofdstroomcircuitVoorzijde
- Uitvoering van het bedieningselementDraaigreep
- Compleet apparaat incl. beveiligingsunitJa
- Motoraandrijving geïntegreerdNee
- Motoraandrijving optioneelNee
- Beschermingsgraad (IP)IP40
