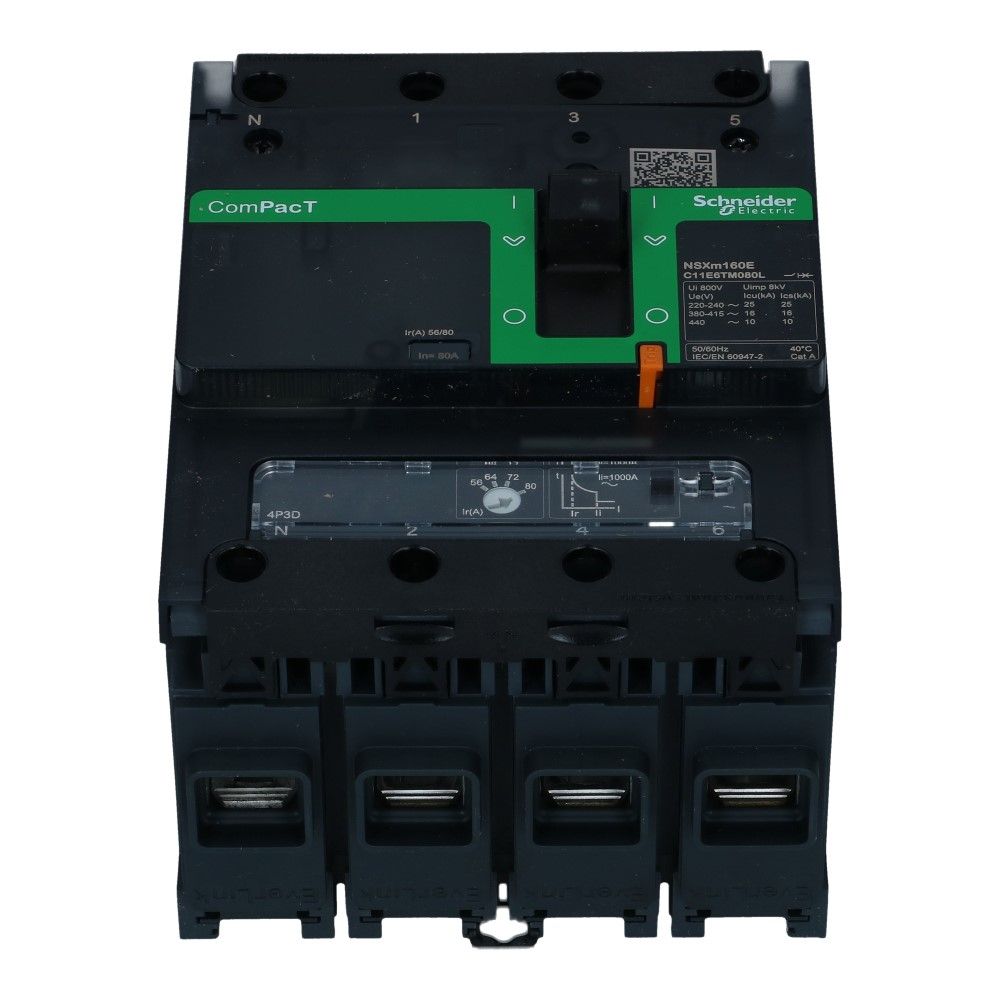

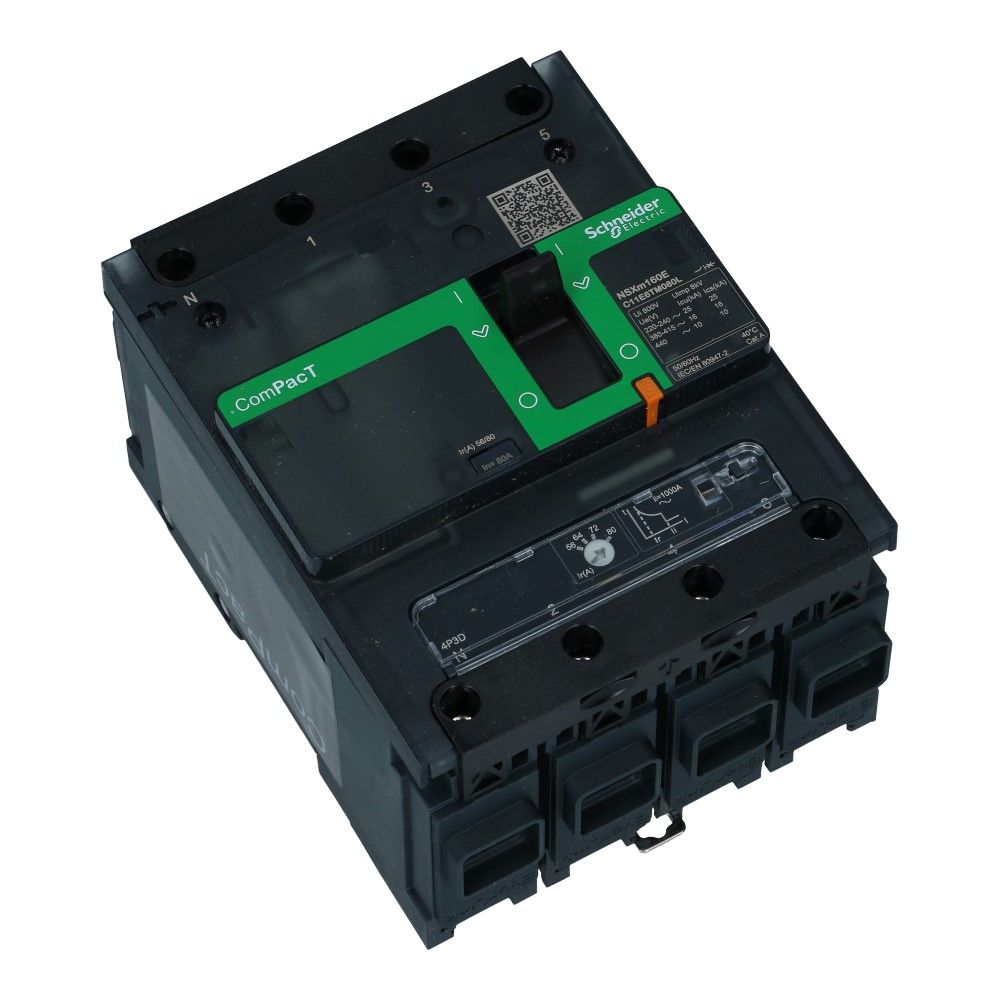

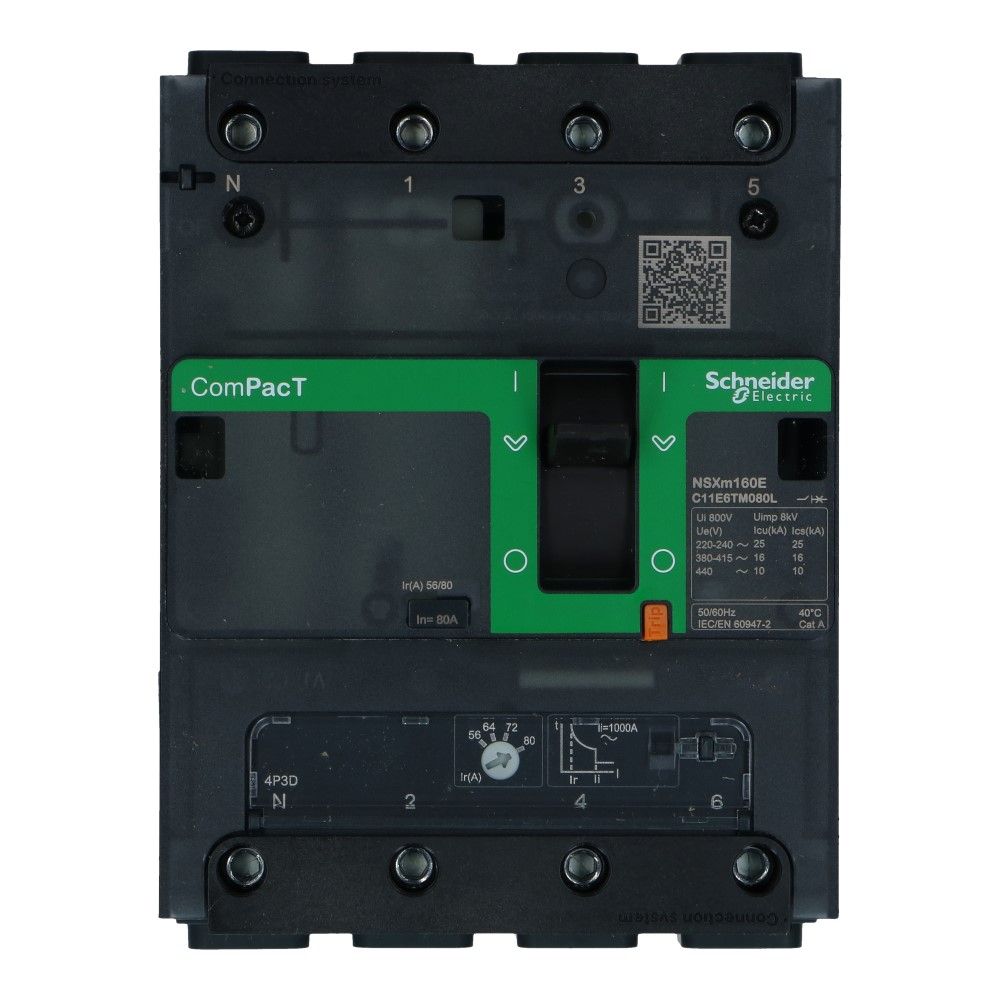

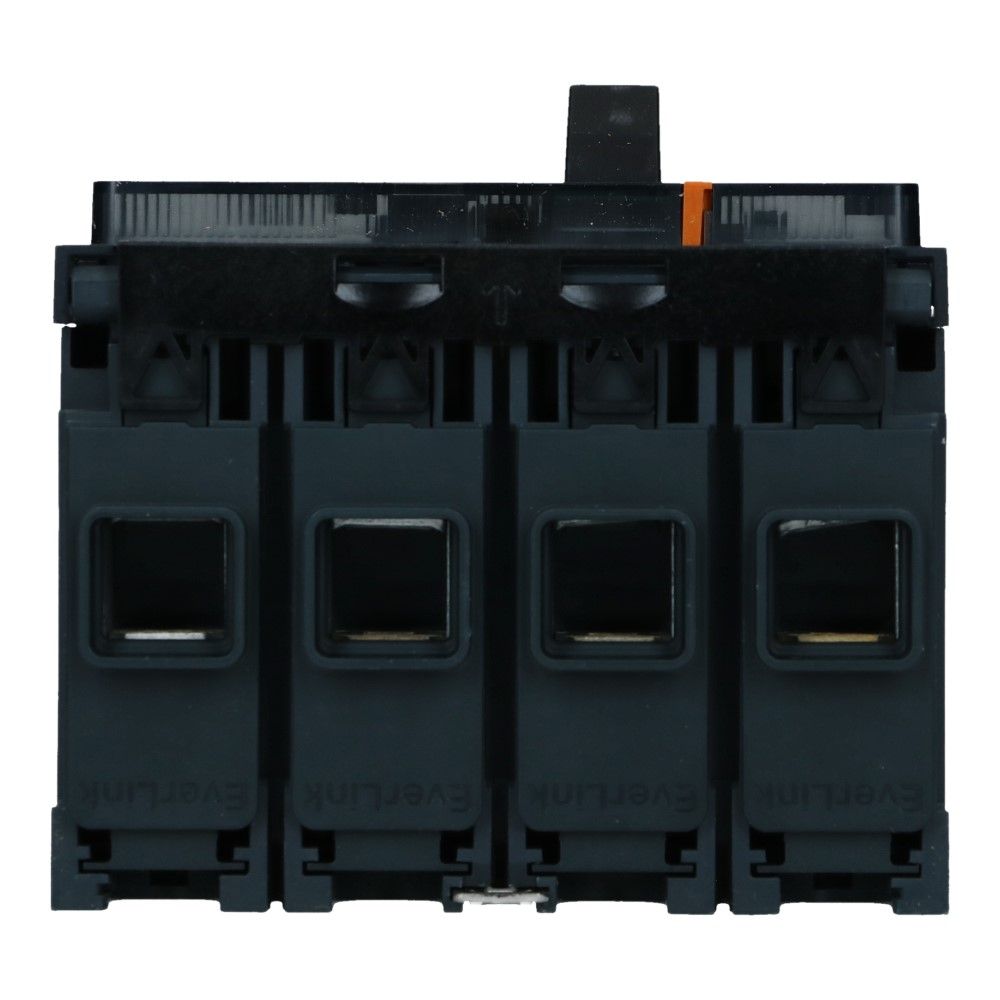

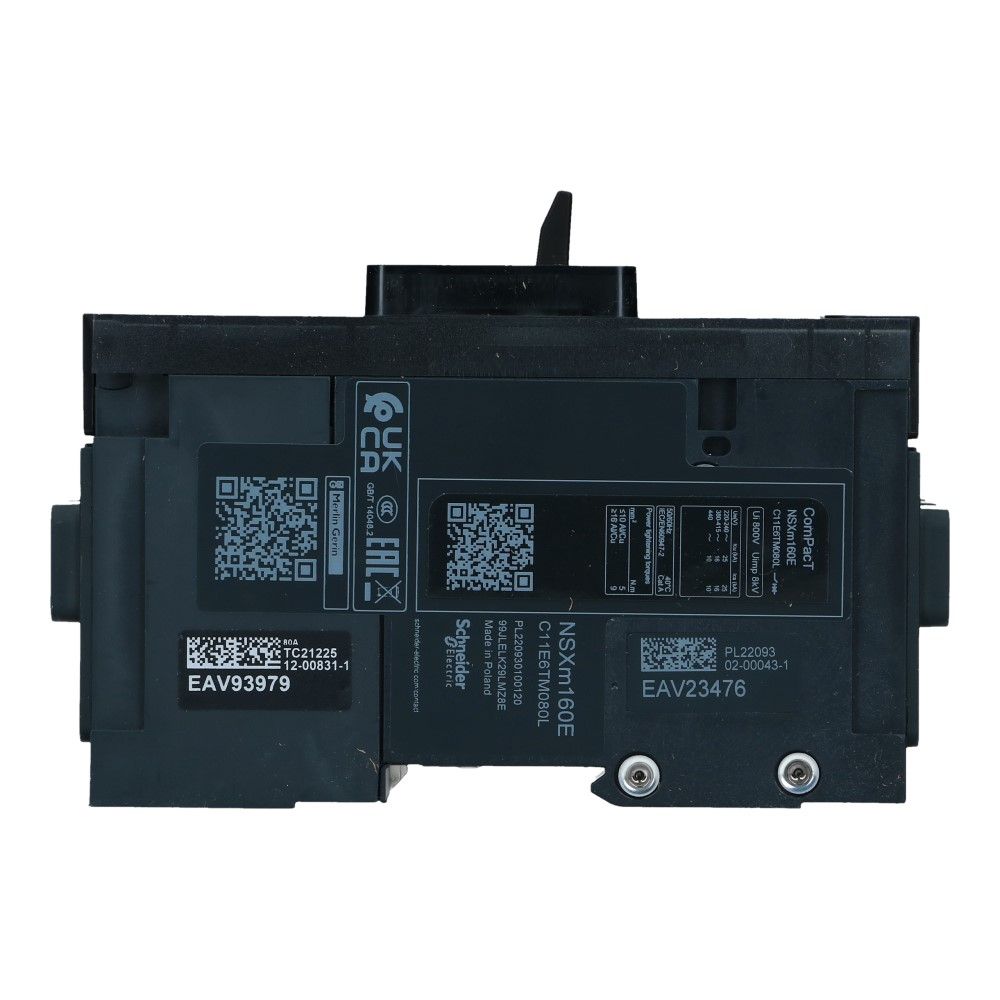

Installatieautomaat 3 polig + nul 25A TM-D 16kA Compact nSXm100E Everlink

Installatieautomaat 3 polig + nul 25A TM-D 16kA Compact nSXm100E Everlink

Artikelnummer: 231694
249,34
301,70
Incl. btw
43-44 werkdagen
30 dagen bedenktijd
Gratis retour
Bel voor technisch advies 036-7505372

Productomschrijving

The Compact NSXm range of circuit breakers is a molded case circuit breaker solution offering great performance in a compact frame size.
Nominal current: 16 to 160 A
• Five breaking capacities : 16, 25, 36, 50, 70 kA at 415 V
• Insulation voltage up to 800 V AC
• One physical size from 16 to 160 A
• 3 and 4 pole versions available
• Isolation with positive break indication
• Thermal-magnetic protections and switch disconnectors
• Embedded Earth leakage protection within the trip unit
• Optimized range of auxiliaries and accessories field installable
• Compliance with international standards: IEC 60947-1 and 2, CCC, EAC and other local certifications
• Compliance with specifications of marine classification companies (MCCB): Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas and RINA

Productspecificaties

  • Artikelnummer
    231694
  • Merk
    SCHNEIDER ELECTRIC
  • Type
    C11E6TM025L
  • Gtin
    3606481989475
  • Document 1
  • Document 2
  • Document 3
  • Nom. continustroom Iu
    25A
  • Nom. spanning
    690 t/m 690V
  • Nom. afschakelvermogen Icu bij 400 V, 50 Hz
    16kA
  • Instelbereik overbelastingsbeveiliging
    17.5 t/m 25A
  • Instelbereik onvertraagde kortsluitbeveiliging
    600 t/m 600A
  • Geïntegreerde aardsluitingsbeveiliging
    Nee
  • Aansluitwijze hoofdstroomcircuit
    Schroefaansluiting
  • Apparaatbouwvorm
    Inbouwapparaat vaste inbouw techniek
  • Geschikt voor omegarailmontage
    Ja
  • Omegarailmontage optioneel
    Nee
  • Met tripcontact
    Ja
  • Met onderspanningsspoel
    Nee
  • Met geïntegreerde onderspanningsspoel
    Nee
  • Aantal polen
    4
  • Positie aansluiting hoofdstroomcircuit
    Voorzijde
  • Uitvoering van het bedieningselement
    Draaigreep
  • Compleet apparaat incl. beveiligingsunit
    Ja
  • Motoraandrijving geïntegreerd
    Nee
  • Motoraandrijving optioneel
    Nee
  • Beschermingsgraad (IP)
    IP40
